PE Granulator machine for recycling plastic raw material

1, Gear box: Standard 180 Type, 1 Pieces

1.1 Gear box material: Alloy steel

1.2 Gear box processing technique:Hardened Tooth surface high-frequency quenching, hardened tooth surface precision grinded by gear grinding machine

1.3 Lubricating system: Forced oil loop lubrication

1.4 Cooling system:  Forced water recycling cooling oil temperature

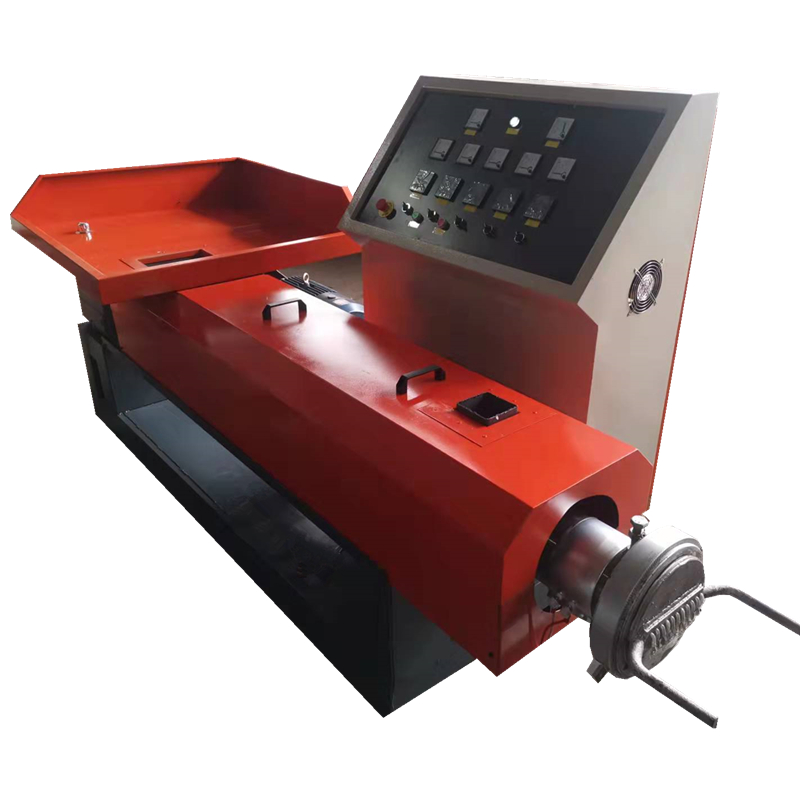

2, Host extruder configuration

2.1 Screw diameter，125mm

2.2 Screw barrel length：1800mm

2.3 Screw barrel material: Use the high quality 45 # medium-carbon steel elaborate, high strength, corrosion

2.4 Reducer:180type, Hardened tooth surface with the water cooling pump

2.5 Motor: 30KW

2.6 automatic temperature control: 5 zones

2.7 Temperature Display: Smart digital display

2.8 Electrical appliance: Zhengtai Brand

2.9 Heating: Stainless steel heating ring

3, Manual screen changer die

3.1 Area around Changer: Φ200mm

4, Auxiliary Equipments

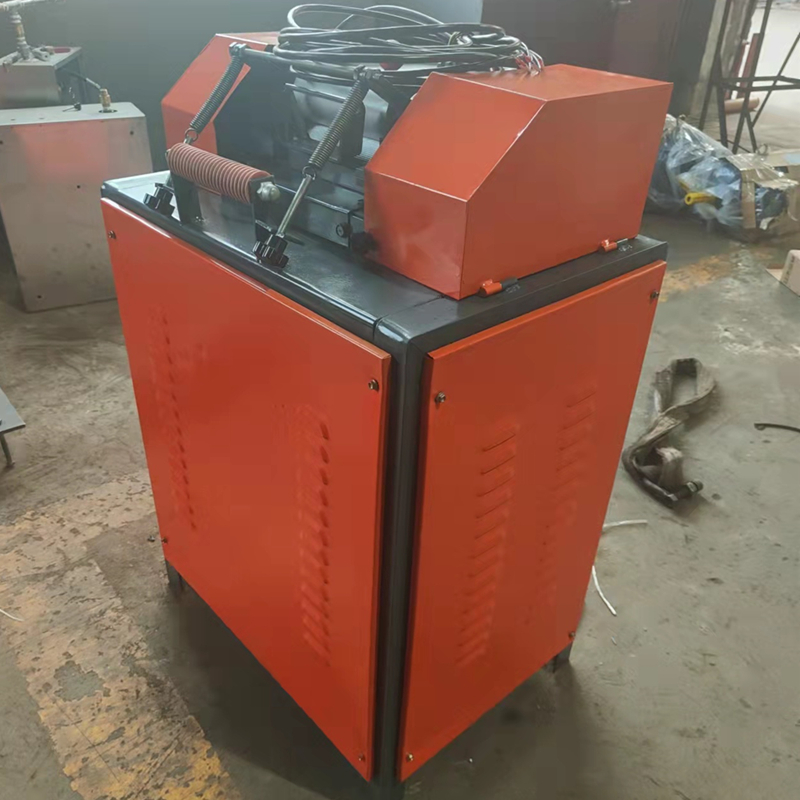

4.1 TL-140 Cutting Machine

4.1.1 Motor Power: 2.2kw

4.1.2 Knife: 18 Pieces

4.1.3 Debugging: electromagnetic speed

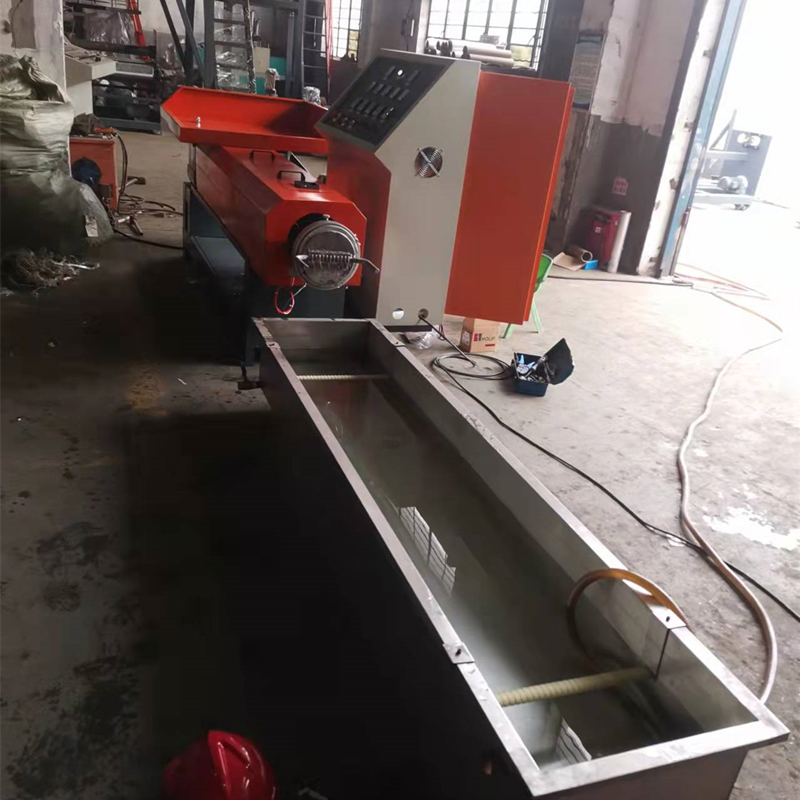

4.2 Stainless cooling tank: 2400m
