HUBEI LIAN PLASTIC FILM INDUSTRY CO.

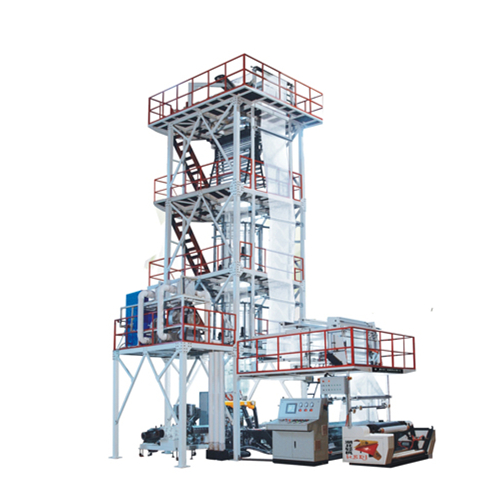

Seven layer high barrier film blowing machine is composed of seven single screw extruders and auxiliaries. It is mainly applicable to HDPE, MHDPE LDPE LLDPE MLLDPE PA EVOH and other resins with gas barrier performance, the production of film is mainly used for heavy packaging, high-grade food bags, vacuum packaging bags, liquid packaging bags and other packaging materials, to achieve the packaging purpose of fragrance, freshness, anti-corrosion, gas tight to extend the shelf life.
Seven layer high barrier film blowing machine is composed of seven single screw extruders and auxiliaries. It is mainly applicable to HDPE, MHDPE LDPE LLDPE MLLDPE PA EVOH and other resins with gas barrier performance, the production of film is mainly used for heavy packaging, high-grade food bags, vacuum packaging bags, liquid packaging bags and other packaging materials, to achieve the packaging purpose of fragrance, freshness, anti-corrosion, gas tight to extend the shelf life.
1. The main machine adopts frequency converter for stepless speed regulation control.
2. The die head adopts the international advanced new cone streamline stacking technology
3. The traction system adopts horizontal ±360° reciprocating rotation.
4.IBC system adopts ultrasonic to control the inner cooling of the membrane bubble, and is equipped with a new electric squirrel cage type bubble stabilizing frame.
5. Ultrasonic automatic deviation correction device.
6. Full tension control system (calculated by taper).
7. The control system adopts PLC centralized control technology.

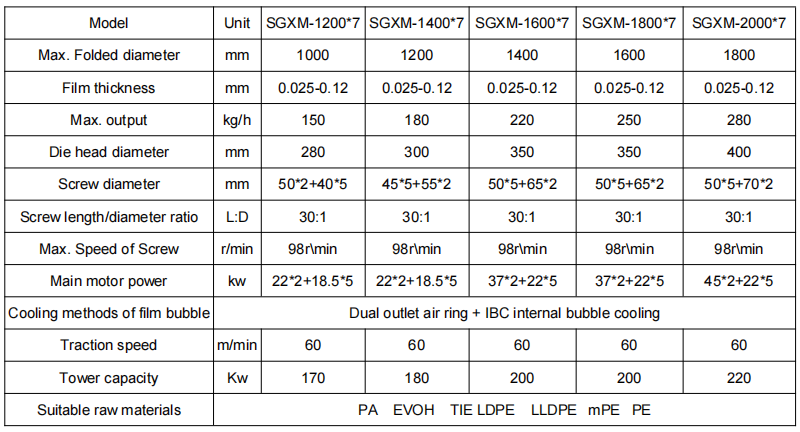

Pls check the below detailed technical parameters of 7layer machine, the blown film machine width starts from 1000mm to 2000mm, introduced film width, thickness, output, die head diameter, screw diameter, motor capacity, traction speed, producing raw materials etc.
