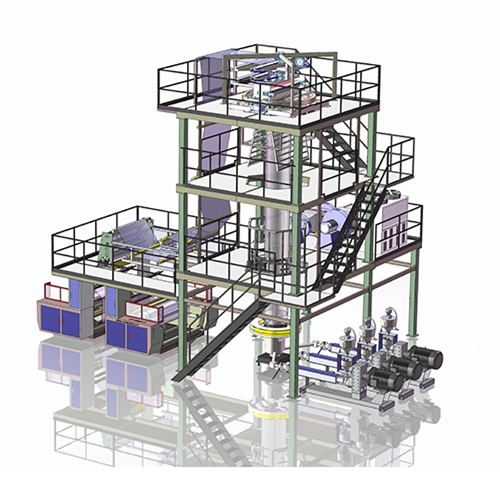

Three Layer Lamination Film Blowing Machine

The film came out of the three layer co-extrusion film blowing machine is composited together, through the die head of the channel, three layer of the flow raw material into one composited layer, forming as a film bubble.

1, Adopt multi-layer co-extrusion plane superposition die head, IBC internal cooling system, upper rotation traction, and automatic rewinding technology.

2, Its products have good performance of negative separation and heat sealing

3, the unit structure is compact, stable performance, high productivity.

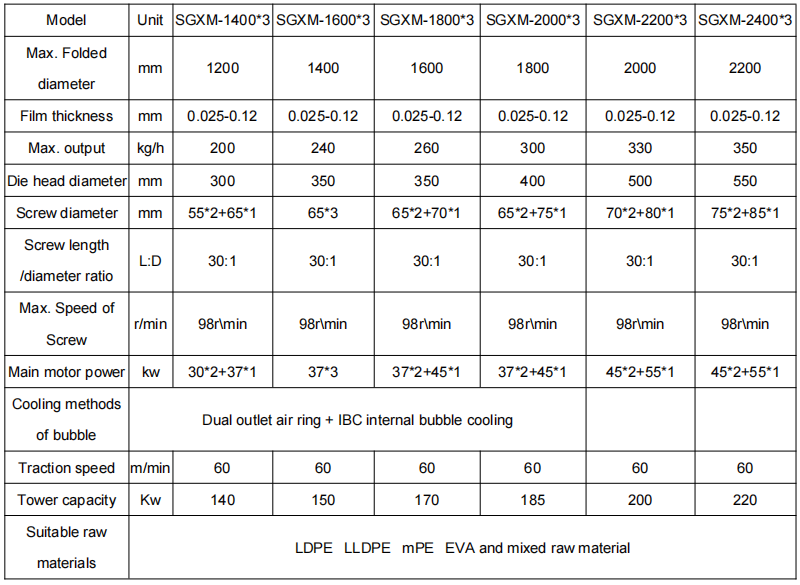

Pls check the below detailed technical parameters of 3layer machine, the blown film machine width starts from 1000mm to 2400mm, introduced film width, thickness, output, die head diameter, screw diameter, motor capacity, traction speed, producing raw materials etc.
